Features

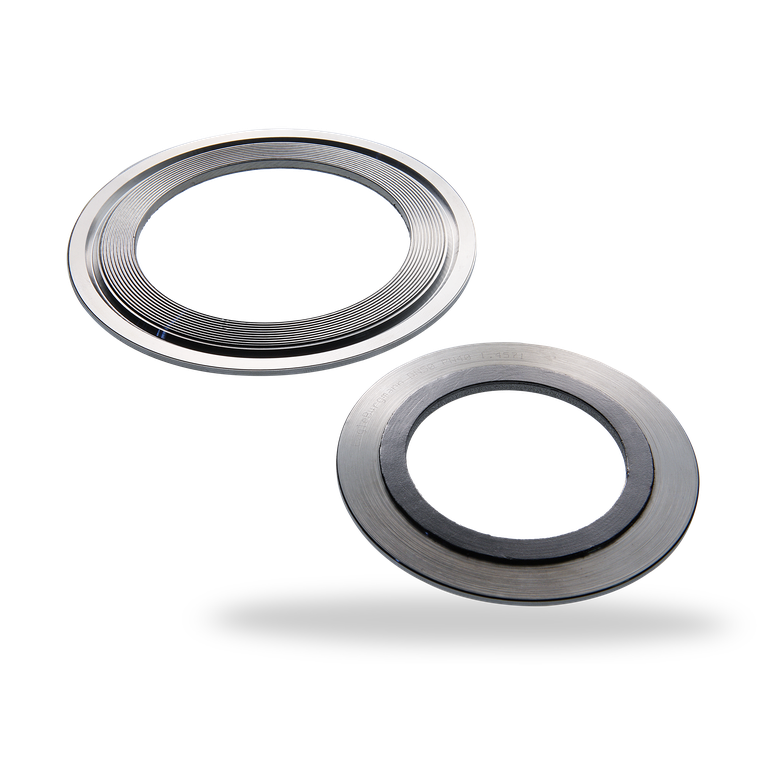

Spiraltherm Graphite S 9584 is a flange seal made from a V-shaped profiled stainless steel tape with spiral-wound graphite middle layer (purity >98 %). The ends of the stainless steel tape are spot-welded.
Advantages
- Universal industrial grade
- Easy to handle
Materials
- Filler material: 98% pure graphite
- Metal spiral: 1.4541 (321) or 1.4571 (316 Ti)
- 9584/...R variants: Sulfur content <100 ppm, soluble sulfates <100 ppm
Standards and approvals
- TA Luft (9584/GIA only)
- BAM (on request)
- Fire-safe API 607 (9584/GIA only)
Recommended applications
Industries
- Chemical industry
- Petrochemical industry
- Power stations
- Flange connections
- Pipe connections
- Valves
- Heat exchangers
- Covers and hatches
- Reactor vessels
- Process vessels
- Maintenance seals
Variants
9584/... (98 % pure graphite filler)
9594/... (99,85 % pure graphite filler)
9594/...R (graphite filler with low sulfur < 200 ppm and water soluble sulfate < 100 ppm cont)
9584/...TZ (with additional PTFE-sealing zone, T < 280 °C)
9594/...TZ (with additional PTFE-sealing zone, T < 280 °C)
9595/... (pure PTFE filler, T < 280 °C)
9596/... (mica filler, T < 900 °C)
9594/... (99,85 % pure graphite filler)
9594/...R (graphite filler with low sulfur < 200 ppm and water soluble sulfate < 100 ppm cont)
9584/...TZ (with additional PTFE-sealing zone, T < 280 °C)
9594/...TZ (with additional PTFE-sealing zone, T < 280 °C)
9595/... (pure PTFE filler, T < 280 °C)
9596/... (mica filler, T < 900 °C)
Notes
Spiraltherm Graphite 9584 gaskets filled with high quality graphite are Fire Safe.
Forms of supply
Rings:
for tongue-and-groove flanges - 9584/NF (standard), 9584/NFR (sulfur content <100 ppm)
for tongue-and-groove flanges, with compression curve - 9584/NFS (standard), 9584/NFSR (sulfur content <100 ppm)
for projection and recess flanges - 9584/VR (standard), 9584/VRR (sulfur content <100 ppm)
for projection and recess flanges, with inner ring - 9584/VRI (standard), 9584/VRIR (sulfur content <100 ppm)
for raised-face flanges, with outer ring - 9584/GA (standard), 9584/GAR (sulfur content <100 ppm)
for raised-face flanges, with inner and outer ring - 9584/GIA (standard), 9584/GIAR (sulfur content <100 ppm)
Manhole Gasket:
9584/MH (standard), 9584/MHR (sulfur content <100 ppm)
for tongue-and-groove flanges - 9584/NF (standard), 9584/NFR (sulfur content <100 ppm)
for tongue-and-groove flanges, with compression curve - 9584/NFS (standard), 9584/NFSR (sulfur content <100 ppm)
for projection and recess flanges - 9584/VR (standard), 9584/VRR (sulfur content <100 ppm)
for projection and recess flanges, with inner ring - 9584/VRI (standard), 9584/VRIR (sulfur content <100 ppm)
for raised-face flanges, with outer ring - 9584/GA (standard), 9584/GAR (sulfur content <100 ppm)
for raised-face flanges, with inner and outer ring - 9584/GIA (standard), 9584/GIAR (sulfur content <100 ppm)
Manhole Gasket:
9584/MH (standard), 9584/MHR (sulfur content <100 ppm)
Product variants
Spiraltherm Graphite 9584/GA
Spiral wound gasket with outer guide ring.
Standard type for raised face flange connections.
Spiral wound gasket with outer guide ring.
Standard type for raised face flange connections.
Spiraltherm Graphite 9584/GIA
Spiral wound gasket with inner and outer guide ring. This style offers the best performance for raised-face flange connections.
The inner ring is used to provide:
- Avoid over-compression at elevated seating loads in high pressure service
- Reduced turbulence within the flange area and protects against corrosion or erosion
- Improvement of the load distribution over the gasket
Spiral wound gasket with inner and outer guide ring. This style offers the best performance for raised-face flange connections.
The inner ring is used to provide:
- Avoid over-compression at elevated seating loads in high pressure service
- Reduced turbulence within the flange area and protects against corrosion or erosion
- Improvement of the load distribution over the gasket
Spiraltherm Graphite S 9584/NF
Spiral wound gasket without guide or inner ring.
This style of gasket is used in load-bearing flange configurations, such as tongue and groove flanges.
Standard dimensions according to EN/ASME.
Spiral wound gasket without guide or inner ring.
This style of gasket is used in load-bearing flange configurations, such as tongue and groove flanges.
Standard dimensions according to EN/ASME.
Spiraltherm Graphite 9584/VRI
Spiral wound gasket with inner ring.
Mainly used for male and female flanges or projection and recess flanges.
An inner ring is necessary as a compression stop.
Spiral wound gasket with inner ring.
Mainly used for male and female flanges or projection and recess flanges.
An inner ring is necessary as a compression stop.
Similar products
Buralloy Heat exchanger seal 2500
The Buralloy heat exchanger seal 2500 is a semi-metal gasket with a soft core and metal jacketing. The Buralloy 2500 thus combines the benefits of a compressible soft seal with the mechanical strength of a metal seal. As a result, it can be produced in many different material combinations and in different styles to suit the application.

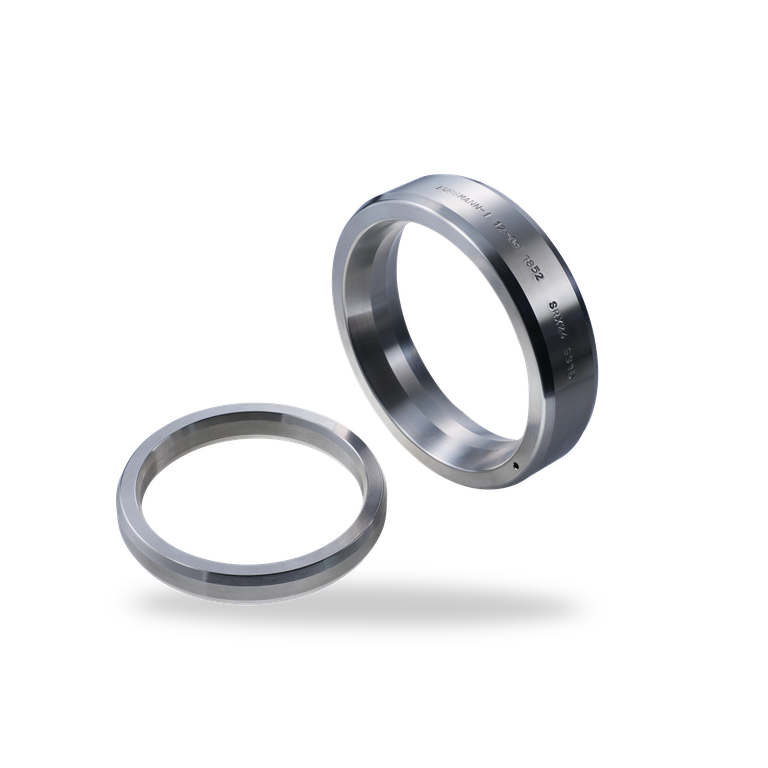

Buralloy Ring Type Joint 2961
